Model: HRY-D

Narrow Web Flexo Printing Machine

Narrow Web Flexo Printing Machine offers high precision and stable printing. It adopts the shortest web path to reduce register adjustment waste. Minimum 200ml ink is enough to start printing

HRY-D Narrow Series Label Flexo Printing Machine

Product Details

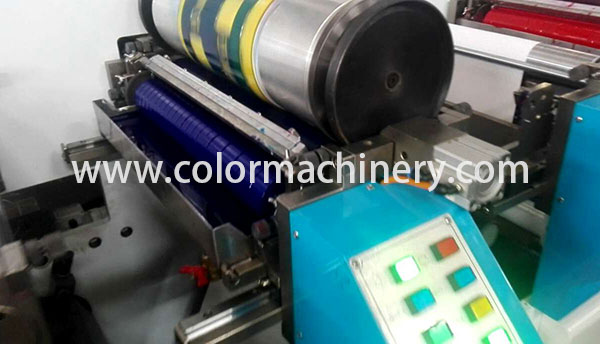

Doctor blade auto adjust, no need by worker. Very low maintenance cost.Our advanced printing equipment uses a high-precision servo motor as the core drive, ensuring the ultimate stability and flexibility during the printing process. Its uniquely designed shortest roll path not only optimizes space utilization, but also greatly reduces material waste caused by registration adjustment, effectively improving production efficiency.

Technical Parameters

Model	HRY370	HRY470	HRY530
Max.paper width	14.6”(370mm)	18.5”(470mm)	20.9”(530mm)
Max.printing width	14.2”(360mm)	18.1”(460mm)	20.5”(520mm)
Max. speed	152m/min	152m/min	152m/min
Repeat printing length	7”-24” (178mm-610mm)	7”-24” (178mm-610mm)	7”-24” (178mm-610mm)
Repeat die cutting length	10”-24” (254mm-610mm)	12”-24” (305mm-610mm)	14”-24” (356mm-610mm)
Printing unit	1-15	1-15	1-15
Max. Rewind diameter	47.5”(1206mm)	47.5”(1206mm)	47.5”(1206mm)
Max. Rewind diameter	47.5”(1206mm)	47.5”(1206mm)	47.5”(1206mm)
Max. Waste rewind diameter	40”(1016mm)	40”(1016mm)	40”(1016mm)
Gear size	1/8CP	1/8CP	1/8CP
Power supply	100PSI（0.6Mpa)	100PSI（0.6Mpa)	100PSI（0.6Mpa)
Power supply	380V 3PH 50HZ	380V 3PH 50HZ	380V 3PH 50HZ
